GNSS antenna burnout protection addresses permanent damage to an active antenna or receiver input from excessive RF energy, electrostatic discharge or electrical faults. It should be specified separately from interference rejection: a device can survive exposure while temporarily losing tracking, or track normally until an unrelated supply fault damages it.
For civil mapping drones and mobile survey equipment, define both requirements. Ask what input exposure the hardware survives and what interference level still permits the measurements your application needs.
What GNSS antenna burnout protection must cover
A protection plan starts with the actual RF and electrical interfaces. List nearby transmitters, their operating modes, cable connections and the antenna bias source. Distinguish an RF input damage limit from a blocking specification and an enclosure-level ESD test from a semiconductor rating.
| Exposure | Evidence to request | What it does not establish |
|---|---|---|
| Continuous or pulsed RF overload | Frequency, input level, duration and post-test result | Tracking quality during exposure |
| ESD at accessible surfaces | Test method, discharge points and assembly configuration | Protection against all surge waveforms |
| Cable-borne surge | Waveform, coupling path and bonding arrangement | Survival of a direct lightning strike |
| Bias supply fault | Voltage limits, current protection and recovery behavior | RF interference immunity |
A statement such as “protected antenna” is incomplete without those conditions.

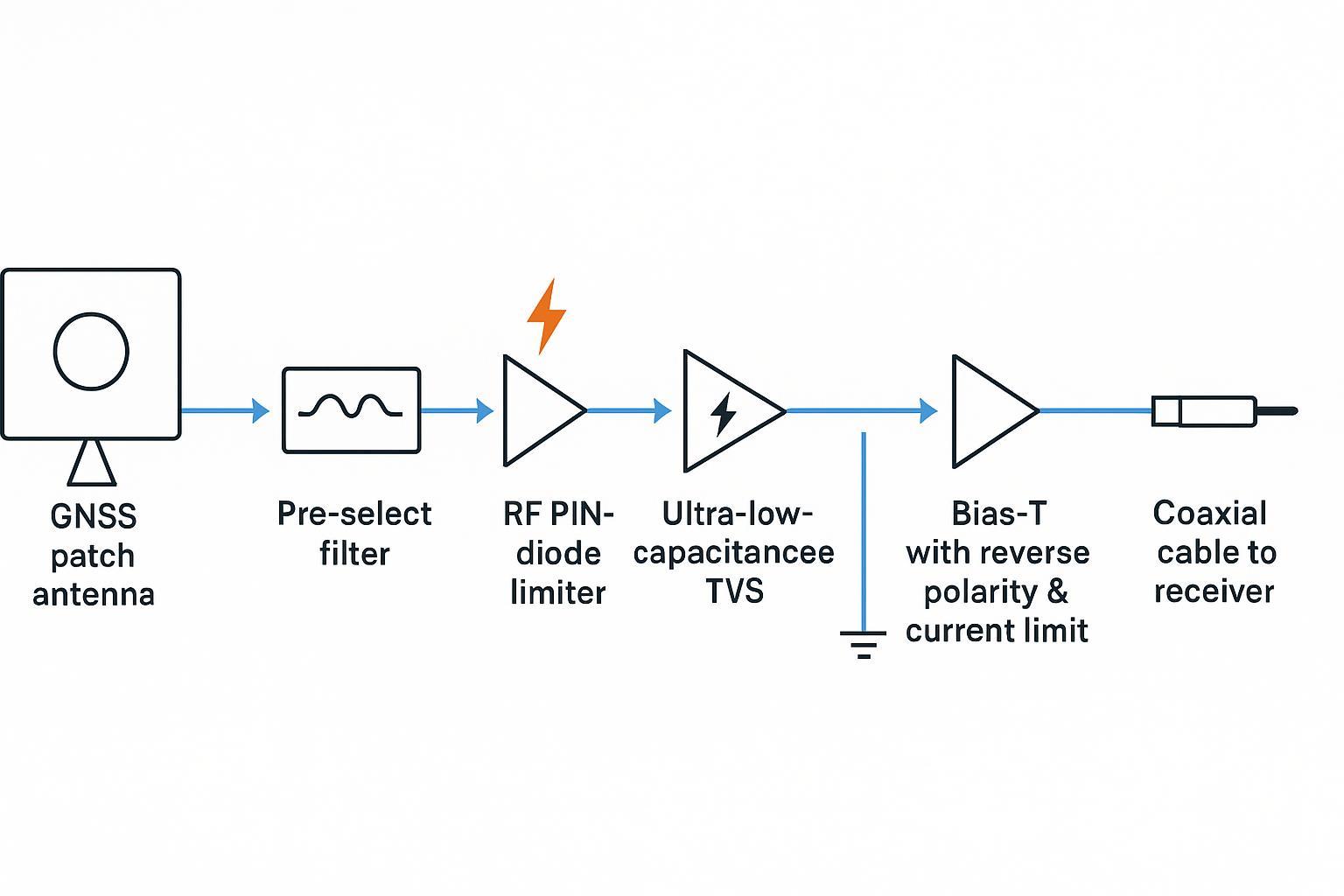

Filters and limiters: choose the order deliberately
Filtering ahead of the first low-noise amplifier can reduce out-of-band energy before it drives that amplifier into nonlinear operation. It also introduces loss before gain. The u-blox GNSS antennas application note, UBX-15030289 discusses this topology tradeoff; its example values should not be treated as limits for another design.
A limiter can restrict excessive RF reaching a sensitive stage, but it needs its own review: clamping level, frequency range, insertion loss, recovery and power handling. A filter alone is not a universal limiter, and a limiter alone does not remove a persistent blocker. Both can affect the useful signal path.
For a purchased active antenna, request documentation rather than assuming an internal filter or protection stage exists. If it is not disclosed, evaluate the antenna as supplied and keep any unsupported protection claim out of the procurement specification.
ESD, surge and DC protection are different circuits
An RF-compatible ESD network must fit the port’s impedance and frequency range. Its layout and return path matter alongside component selection. A device-level rating is not evidence that the assembled enclosure and connector pass the intended installation test.
Outdoor cable entry protection needs coordination with the site’s bonding and surge design. Check passbands, DC continuity, current capacity and connector sealing for every inline protector. Adding an arrestor without a suitable discharge path does not establish protection for the installation.
On the bias side, review overvoltage, reversed connections where relevant, short circuits and startup current. Set limits from the selected antenna and receiver documentation. Do not choose a generic current threshold and assume it fits every active antenna.
Integration on a civil UAV
Start with placement and routing. Keep the antenna’s sky view clear, follow its ground-plane instructions and move it away from onboard transmit antennas and noisy electronics where practical. A universal separation distance cannot account for every transmitter, enclosure and antenna pattern.
The UAV GNSS integration guide covers the wider airframe tradeoffs. For the RF chain, confirm that antenna gain after cable and accessory losses remains inside the receiver’s specified range. Extra gain cannot repair overload or restore information already lost before the first amplifier.
Validate survival and tracking separately
Use a controlled laboratory setup for conducted overload work. Define exposure levels with the component supplier and lab before applying a signal. Include calibrated coupling and attenuation, and account for power at the device port. Uncontrolled overdrive can destroy the hardware being evaluated.
Record a baseline with the production cable, supply and receiver. During the approved exposure, log tracking status, per-signal C/N0, interference indicators and antenna supply current if available. After exposure, repeat the baseline and inspect for persistent changes. Temporary loss of lock and permanent degradation belong in separate result fields.
For airborne qualification, RTCA’s DO-160 overview describes the environmental and electromagnetic test framework. A project must select applicable categories and procedures; citing the document does not qualify an antenna.
Close with an installed comparison using normal onboard radio states. Change one variable at a time: placement, cable route or antenna assembly. Retain raw observations and mark transmitter events so any apparent improvement can be traced to the configuration.
Frequently asked questions
Does a pre-filter prove burnout protection? No. Request the documented input exposure and post-test result. Filtering may help overload behavior without establishing a damage-survival limit.
Can low C/N0 prove that an LNA is damaged? No. Obstruction, interference, supply problems and cable loss can cause similar symptoms. Compare with a known-good assembly under controlled conditions.
Should every installation use the same protection stack? No. Exposure, RF budget, power delivery and bonding determine the design. Validate the complete chain.
